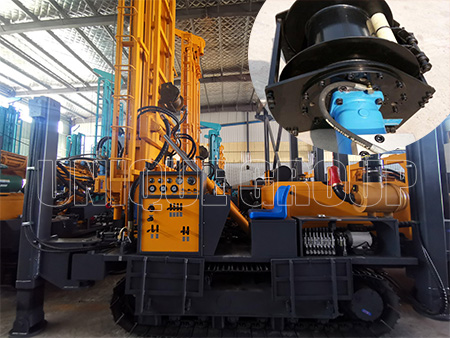

In the intricate structure of water well drilling rigs, the winch plays a pivotal role and is a key component ensuring the smooth progress of drilling operations. Understanding the working principles, type characteristics, and operation precautions of winches is of great significance for enhancing drilling efficiency and ensuring operational safety.

Core Functions of Winches

Essentially, a winch is a lightweight and compact lifting device. Its core function is to precisely lift, lower, and haul heavy objects such as drilling tools vertically, horizontally, or at an incline by winding or unwinding steel wire ropes on a drum. In water well drilling operations, drilling tools need to be frequently raised and lowered into the borehole. With its stable power output and precise control capabilities, the winch ensures the smooth lifting and lowering of drilling tools. This not only directly affects the drilling progress but also has a profound impact on the quality of the borehole. For example, during deep well drilling, the winch can accurately control the lowering speed of the drilling tool, preventing damage to the tool or deviation of the borehole caused by excessive speed.

Diverse Types of Winches

Classification by Power Source

Electric Winches: The most common type, electric winches use an electric motor as the power source. The electric motor efficiently converts electrical energy into mechanical energy. Through a reduction mechanism composed of V-belts, shafts, and gears, the high-speed and low-torque output of the motor is transformed into low-speed and high-torque output, driving the drum to operate stably. These winches have advantages such as rapid startup, smooth operation, and convenient speed adjustment, making them suitable for most conventional water well drilling scenarios. For instance, in water well construction around urban areas, with a stable power supply, electric winches can work continuously and efficiently to meet the demand for rapid well completion.

Hydraulic Winches: Also known as hydraulic winches, they utilize a hydraulic system as the power transmission medium. The prime mover drives the hydraulic pump, which pressurizes the working fluid and sends it to the actuators (hydraulic cylinders or hydraulic motors). By precisely controlling the flow rate of the fluid input into the actuators, a wide range of stepless speed regulation of the winch is achieved. Hydraulic winches feature a large transmission ratio, compact structure, smooth operation, and excellent overload protection performance. In special drilling operations with strict requirements for equipment size and weight, while also requiring strong lifting force, such as water well drilling in mountainous areas or narrow spaces, hydraulic winches demonstrate their unique advantages.

Pneumatic Winches: Powered by compressed air provided by an air compressor, pneumatic winches have characteristics such as explosion-proof, dust-proof, and resistance to liquid splashing, enabling them to operate stably in harsh environments. Their structure typically consists of a pneumatic motor, reduction gear, brake, clutch, drum, overload protection device, and control valves. When conducting water well drilling in places with flammable and explosive risks, such as oil fields and mines, pneumatic winches become the preferred choice to ensure safe operations.

Classification by Speed Characteristics

High-Speed Winches: The rated speed of the steel wire rope on the drum of high-speed winches is relatively high, generally about 30 m/min. These winches are suitable for scenarios where lighter drilling tools need to be lifted or lowered quickly, effectively reducing the time for each round-trip of the drilling tool and improving overall drilling efficiency. In shallow well drilling, due to the relatively light weight of the drilling tools, high-speed winches can fully utilize their speed advantage to complete the lifting and lowering operations of the drilling tools quickly.

Low-Speed Winches: The rated speed of the steel wire rope on the drum of low-speed winches is approximately 7 – 12 m/min. Although slower, they can provide greater lifting force, making them suitable for lifting heavier drilling tool assemblies during deep well drilling. When drilling wells hundreds or even thousands of meters deep, the weight of the drilling tools increases significantly. At this time, low-speed winches can ensure the smooth and safe lifting and lowering of the drilling tools with their strong torque output.

Key Operation Points and Safety Precautions

Thorough Checks Before Operation

Before each use of the winch, operators must conduct a comprehensive and detailed inspection of the equipment. First, check the wear condition of the steel wire rope, looking for signs of broken wires, deformation, or excessive wear. Any defect in the steel wire rope may lead to serious safety accidents during operation, so if any problem is found, it must be replaced immediately. Second, inspect the braking system, including the wear degree of the brake pads, the elasticity of the brake springs, and the sensitivity of the brake control device. Ensure that the brake can be activated quickly and effectively when needed to prevent the drum from rotating accidentally. In addition, check whether the bolts at the connection parts are tightened and whether the lubrication of the transmission components is good, ensuring that the equipment does not loosen or jam during operation.

Standard Operation Procedures During Operation

Startup and Operation: When starting the winch, first place the controller in the zero position, and then start the power source according to the operation procedures. After the power source is running stably, slowly adjust the controller to make the drum start rotating. During the process of lifting or lowering the drilling tool, the operator should always pay attention to the running status of the equipment, including the rotation speed of the drum, the arrangement of the steel wire rope, and the smoothness of the drilling tool’s lifting and lowering. It is strictly prohibited to apply emergency brakes or suddenly change the direction of operation during the equipment’s operation to avoid excessive impact on the equipment and potential malfunctions.

Load Control: Operate strictly in accordance with the rated load of the winch, and overloading is strictly prohibited. Before lifting the drilling tool, accurately estimate the total weight of the drilling tool and its auxiliary equipment, and compare it with the rated lifting force of the winch. If the actual load is close to or exceeds the rated load, corresponding measures must be taken, such as reducing the number of drilling tools or replacing the winch with a larger specification. At the same time, during the operation, avoid collisions between the drilling tool and the wellbore during lifting or lowering to prevent damage to the equipment or breakage of the steel wire rope caused by additional impact forces.

Maintenance and Upkeep After Operation

Timely and effective maintenance of the winch after operation can extend the service life of the equipment and ensure that it always remains in good working condition. First, clean the equipment to remove dust, oil stains, mud, and other debris on the surface, preventing these impurities from entering the interior of the equipment and accelerating component wear. Second, lubricate the steel wire rope by applying special steel wire rope lubricant to reduce friction between the wire rope and the drum and pulleys, thereby increasing its service life. At the same time, check the wear condition of each transmission component and replace severely worn components in a timely manner. In addition, inspect and maintain the electrical system (for electric winches) or hydraulic system (for hydraulic winches) to ensure the normal operation of the system. Regular and comprehensive maintenance of the winch can effectively reduce equipment failure rates and improve the safety and stability of drilling operations.
