Case

Project Background

This case features a professional mineral exploration contractor based in Uzbekistan. The company focuses on local gold copper uranium and polymetallic resource prospecting, undertaking large-scale geological exploration projects across regional mountain and desert areas. The client was in urgent need of a high-performance geological exploration drilling rig to support deep hole drilling tasks over 1000 meters. After strict screening and in-depth technical communication with multiple domestic and foreign drilling rig manufacturers, the client finally selected UNIQUEMAC UYX1200 truck-mounted hydraulic wireline core drilling rig to solve on-site construction pain points.

Client On-Site Challenges and Core Requirements

During one-on-one technical discussions, the customer emphasized several major on-site challenges that traditional mineral exploration drilling rigs could not solve stably. All construction requirements were put forward based on the actual geological conditions and project schedules of Uzbekistan’s mineral exploration sites.

First, the client’s exploration sites are widely scattered across Uzbekistan’s mountainous and desert areas, requiring frequent cross-region relocation of drilling equipment. Skid-mounted core drilling rigs used in previous projects required complex disassembly and crane hoisting, resulting in long transition cycles and high construction costs.

Second, the local mining area features hard rock formations and complex broken strata. Ordinary hydraulic core drilling rigs have unstable core taking performance, low rock core recovery rate, and cannot provide accurate core data for mineral resource evaluation.

Third, the project requires continuous deep hole drilling with a designed depth of more than 1000 meters. The harsh field construction environment puts forward high requirements on the operational stability and continuous working capacity of the geological exploration drilling rig.

Finally, the client’s on-site construction team is small, and they urgently need a highly integrated wireline core drilling rig with simple operation and fast installation to save on-site assembly time and labor costs.

Why the UYX1200 Truck-mounted Hydraulic Wireline Core Drilling Rig Was Selected

Combined with the client’s actual construction difficulties and Uzbekistan’s unique geological conditions, our engineering team abandoned conventional skid-mounted drilling rig solutions and officially recommended theUYX1200 truck-mounted hydraulic wireline core drilling rig. Every design advantage of this hydraulic core drilling rig targets the client’s on-site pain points precisely.

Because the client needs frequent cross-terrain transition between scattered exploration points, we recommended the truck-mounted integrated configuration instead of traditional skid-mounted equipment. The UYX1200 geological exploration drilling rig is equipped with an integral vehicle chassis, which realizes self-driving transition without crane hoisting, greatly shortening the site deployment cycle and reducing auxiliary construction costs.

Because the project requires long-term continuous deep hole operation in complex hard strata, we adopted a full hydraulic drive system for the UYX1200 truck mounted coring drilling rig. Compared with mechanical drilling rigs, this wireline core drilling rig features automatic operation, stable power output and simple operation, effectively adapting to long-hour uninterrupted drilling construction and reducing equipment failure rates in harsh environments.

Because the client pursues high core recovery rate and accurate geological exploration data, the UYX1200 truck-mounted core drilling rig is equipped with a professional wireline coring system. It avoids frequent tripping of full drill pipes, greatly saves auxiliary working time, and ensures complete collection of rock cores in broken and hard strata, solving the client’s long-standing problem of low coring efficiency.

Because local complex strata are prone to hole collapse and slag accumulation, the UYX1200 hydraulic core drilling rig is matched with a high-performance supporting mud pump. The stable circulating mud system can effectively protect holes and remove slag during deep hole drilling, ensuring smooth and continuous drilling operation for Uzbekistan’s mineral exploration projects.

Custom Equipment Configuration and Technical Parameters

According to the client’s 1000-meter deep hole exploration requirements and local stratum characteristics, we configured a full set of professional supporting systems for the customized UYX1200 truck-mounted hydraulic wireline core drilling rig to fully meet the construction standards of Uzbekistan’s geological exploration projects.

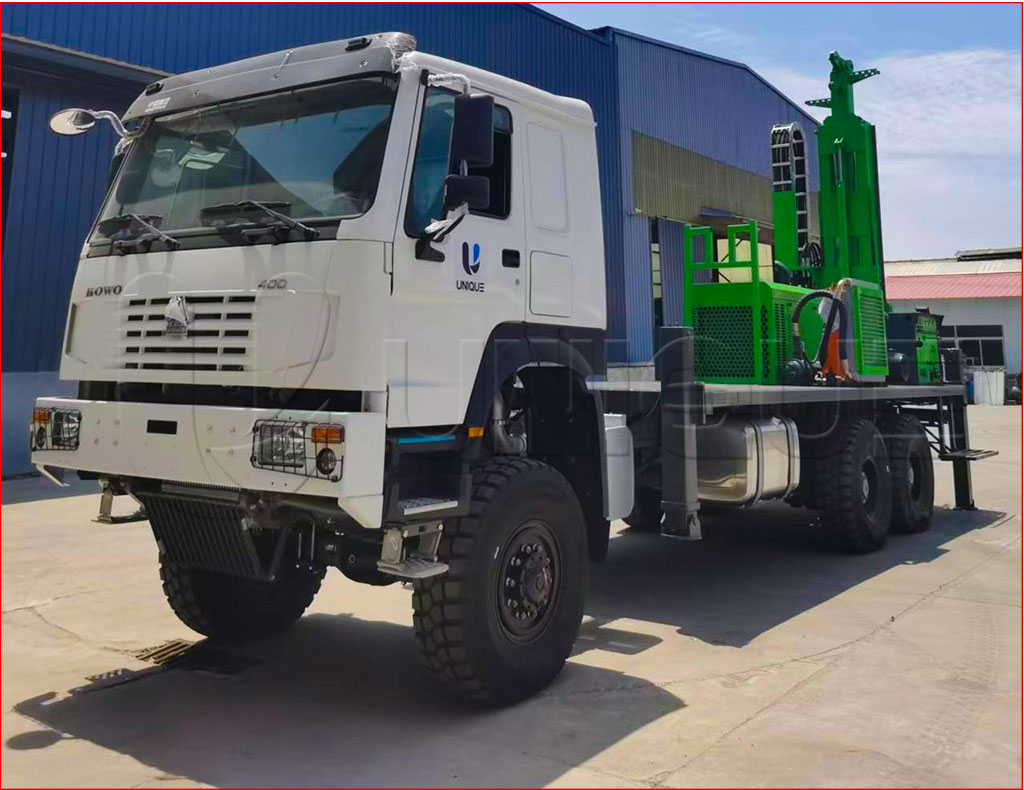

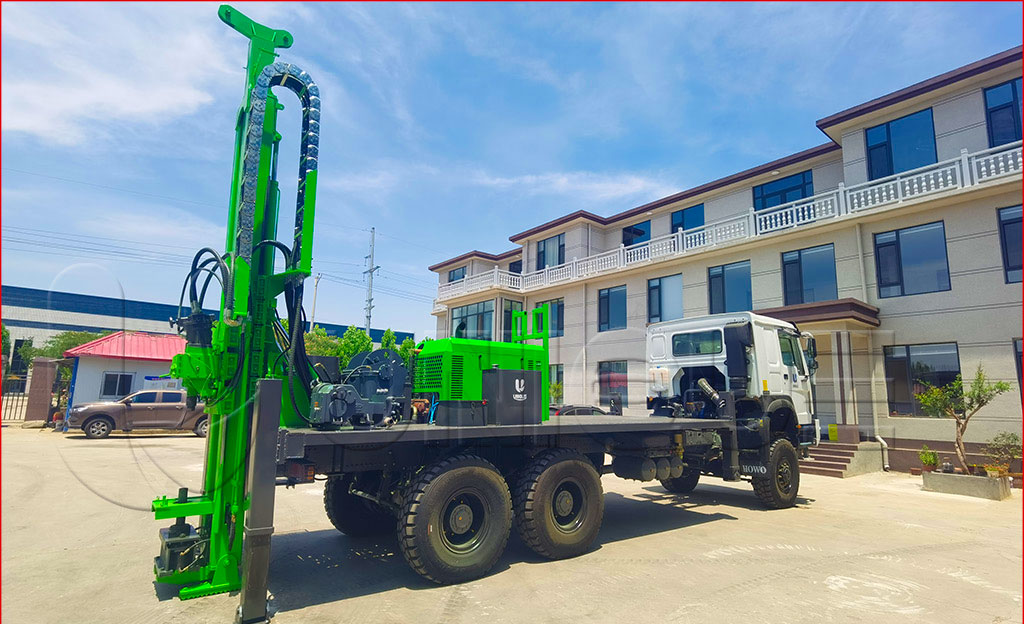

Custom Model: UYX1200 Truck-mounted Hydraulic Wireline Core Drilling Rig

Main Drilling Depth Parameters:

BTW drilling depth reaches 1400 meters

NTW drilling depth reaches 1200 meters

HTW drilling depth reaches 1000 meters

PQ drilling depth reaches 800 meters

Full Set Configuration: Full hydraulic power system, high-performance mud pump, high-strength drilling mast, hydraulic winch system, precision wireline coring system, intelligent control system and special transport chassis. The highly integrated configuration enables the UYX1200 mineral exploration drilling rig to be put into construction quickly after arriving at the site.

Simulated Working Condition Factory Test Before Shipment

To ensure the UYX1200 truck-mounted hydraulic wireline core drilling rig can adapt to Uzbekistan’s mountainous and desert harsh construction environment, our technical team conducted continuous full-function simulation tests in the factory before delivery, completely reproducing the actual on-site drilling working conditions.

Engineers systematically tested and recorded the whole machine’s engine operating stability, hydraulic system pressure bearing capacity, drilling mast lifting flexibility, rotary head power performance, hydraulic winch lifting stability, mud pump circulating linkage effect and vehicle driving adaptability. During the whole testing process, every operating parameter was strictly verified and fine-tuned to ensure the UYX1200 geological exploration drilling rig can withstand long-term high-intensity deep hole drilling operations in complex strata.

All test data fully meets the design standards and the client’s project requirements, providing solid pre-sale quality assurance for the overseas mineral exploration project.

Perfect Adaptation to Uzbekistan Local Geological Conditions

Uzbekistan is rich in mineral resources such as gold copper uranium and polymetallic ores, with widespread hard rock strata and deep burial mineral layers. Most local exploration projects require deep hole drilling and high-precision coring in complex mountain and desert terrain, which puts forward extremely high requirements on the comprehensive performance of hydraulic core drilling rigs.

As a professional deep hole wireline core drilling rig, the UYX1200 truck-mounted core drilling rig has super deep drilling capacity, stable full hydraulic power output and efficient wireline coring technology. It perfectly adapts to the hard stratum drilling and continuous exploration operation requirements of Uzbekistan’s mineral projects, and can efficiently cope with various complex geological exploration working conditions in Central Asia.

Expected Project Benefits and Client Outcomes

After the official delivery and commissioning of the UYX1200 truck-mounted hydraulic wireline core drilling rig, the client expects to achieve comprehensive optimization of construction efficiency and project costs in subsequent Uzbekistan mineral exploration projects, with core benefits as follows:

✔ Greatly shorten equipment relocation and on-site deployment time, improving the overall progress of scattered exploration projects

✔ Significantly improve rock core recovery rate and coring accuracy, providing reliable data support for mineral resource reserve evaluation

✔ Improve deep hole drilling efficiency and realize continuous and uninterrupted drilling operation

✔ Reduce on-site manual operation links and effectively control labor costs for exploration construction

✔ Stable equipment operation reduces failure downtime and later maintenance costs, improving project economic benefits

Shipment Preparation and Project Follow-up Service

At present, the customized UYX1200 truck-mounted hydraulic wireline core drilling rig has completed all factory acceptance tests, simulated working condition debugging and packaging inspection. All export procedures are fully prepared, and the equipment will be shipped to Uzbekistan soon to launch formal geological exploration and mineral drilling work.

Our team will provide full-process overseas technical guidance and after-sales service to ensure the stable operation of the hydraulic core drilling rig and help the client’s exploration project progress efficiently.

Custom Drilling Solutions for Global Mineral Exploration Projects

We are a professional manufacturer of truck-mounted hydraulic wireline core drilling rigs, focusing on the research and development and customization of high-efficiency geological exploration drilling rigs and mineral exploration drilling rigs. If you are looking for reliable deep hole coring drilling equipment for mineral exploration geological survey or water well drilling projects in Central Asia Africa South America and other regions, our engineering team can provide targeted customized drilling solutions according to your actual geological conditions and drilling depth requirements.

Whether your exploration project is located in Central Asia, Africa, South America or other regions, our engineering team can recommend the most suitable drilling solution according to your geological conditions, drilling depth and project budget.

Contact us today to discuss your next mineral exploration project.
